TRANSFORMER & SUB PANEL

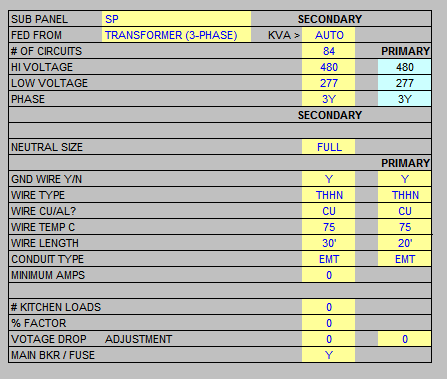

Below is the general information input screen for a sub panel with a transformer. The yellow cells require user input and/or selection.
